Granule Stick Pack Machine
COTECH configures stick pack machines for measured portions of free-flowing or moderately flowing granules. The dosing method, feed path, stick dimensions and lane layout are selected around your actual particles, target portion and production brief.
CONTACT USWhich Dosing Systems Are Suitable for Packaging Granules?
Granules are not all alike. Sugar crystals, soluble coffee granules and seasoning blends vary in particle size, density and flow. Volumetric cup dosing can be assessed for a consistent, free-flowing product; a weighing approach may be considered when portion accuracy or material variation calls for it. The choice is confirmed with your samples and target weight.
Product movement matters from the hopper to the finished stick. Bridging, segregation, static and breakage can affect filling consistency. Fine particles on the sealing area, as well as the material's sensitivity to moisture, influence the feed arrangement, film selection and sealing trial.
Single-lane and multi-lane layouts are planned against required output, stick size and available floor space. Coding, inspection, counting and downstream collection can be considered as part of the line after the granules, pack and production target are reviewed together.
GRANULE / STICK PACK FORMATFeatures
- Dosing approach selected for particle flow and portion target
- Single-lane or multi-lane layouts by production brief
- Narrow, single-serve stick pack forming and sealing
- Feed path reviewed for bridging and product segregation
- Fill, film tracking and sealing parameters set by product trials
- Particle breakage and seal-area contamination assessed
- Hopper and product-contact areas planned for cleaning
- Print registration, coding and inspection options
- Stick counting, collection or cartoning integration
- Operator interface and project-specific documentation
Services
- Granule and film sample review before final configuration
- Stick dimensions, target weight and lane-count confirmation
- Factory acceptance testing against agreed project criteria
- Installation guidance, operator training and commissioning support
- Spare-parts planning and technical assistance
- Operation, cleaning and maintenance documentation
- Review of destination-market validation requirements
PACK DESIGN
Types of Packages
Choose a stick pack structure that suits the product, opening experience and downstream handling. Final tooling and seal design are confirmed with your samples.
Double Stick
Stick Strip
Rounded Edges
Pillow Stick
Lap Seal
Side Fin
Shaped Stick
Formats
Stick width and length, target weight, seal layout and lane count are defined from the granules and finished-pack brief. Single-serve sticks can be evaluated for soluble coffee granules, crystalline sugar, salt and granular seasonings.
Tell us whether sticks will be sold individually, grouped in strips or collected into cartons. Particle behavior during filling and the intended downstream handling both influence the final format.
Laminates
Heat-sealable films are evaluated for product compatibility, moisture barrier, seal strength and distribution conditions. Granules and fines in the sealing zone can affect the result, so a suitable laminate cannot be selected from appearance alone.
If you have a proposed film, send its specification and a roll sample with your product. Seal integrity, film tracking and machinability should be confirmed in a trial before the final structure is agreed.
STICK PACK APPLICATIONS
Product Samples

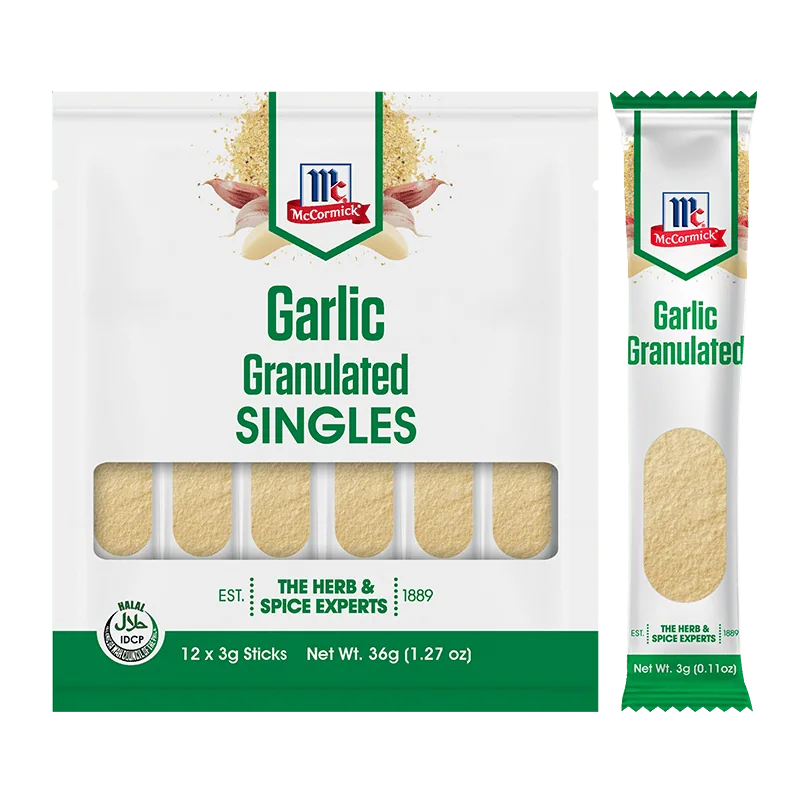

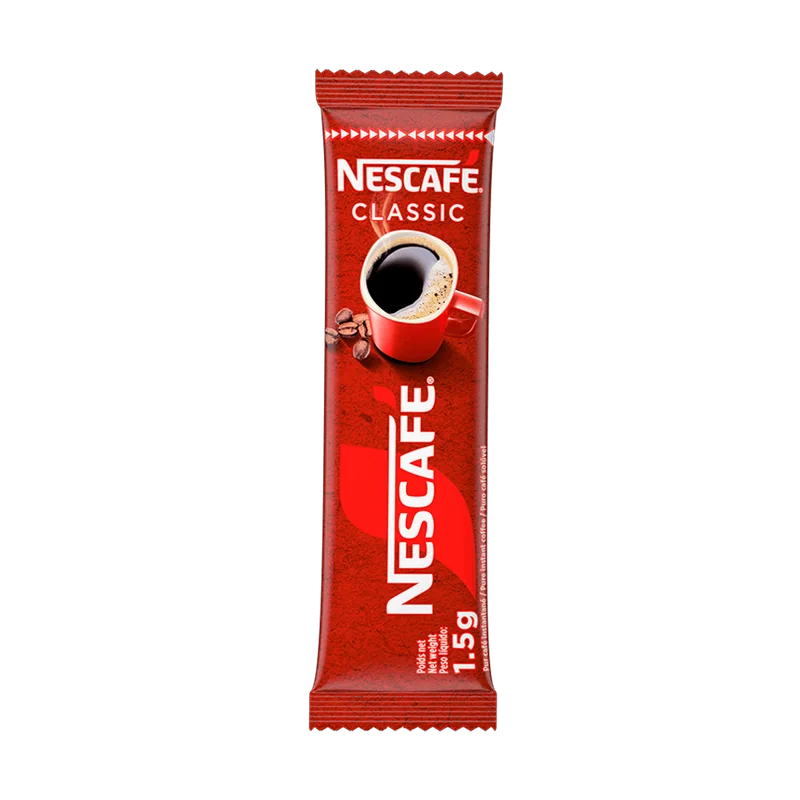

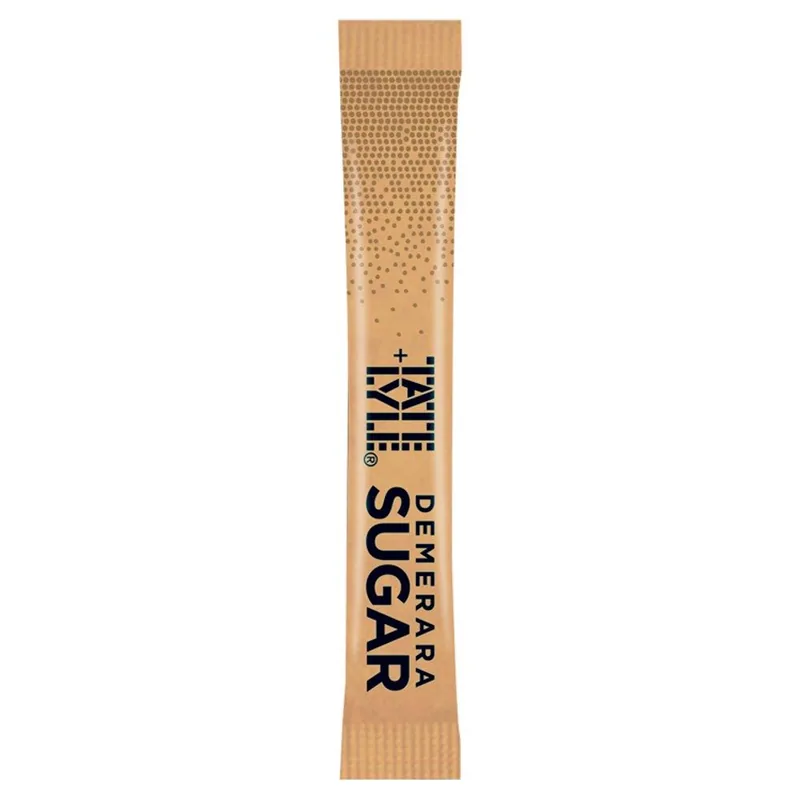

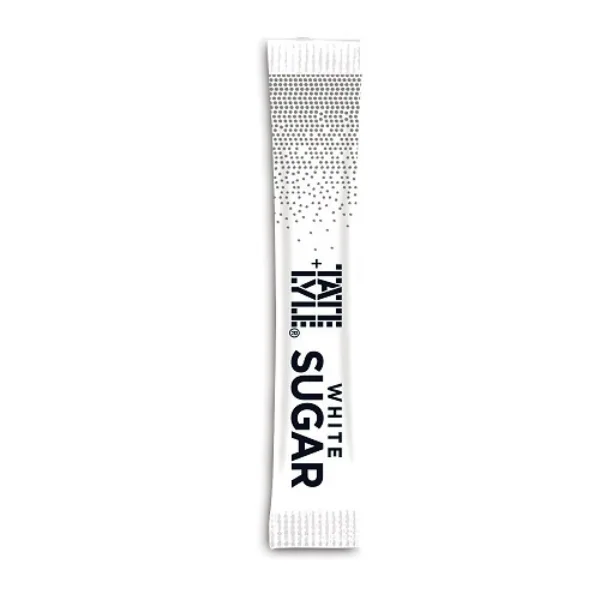

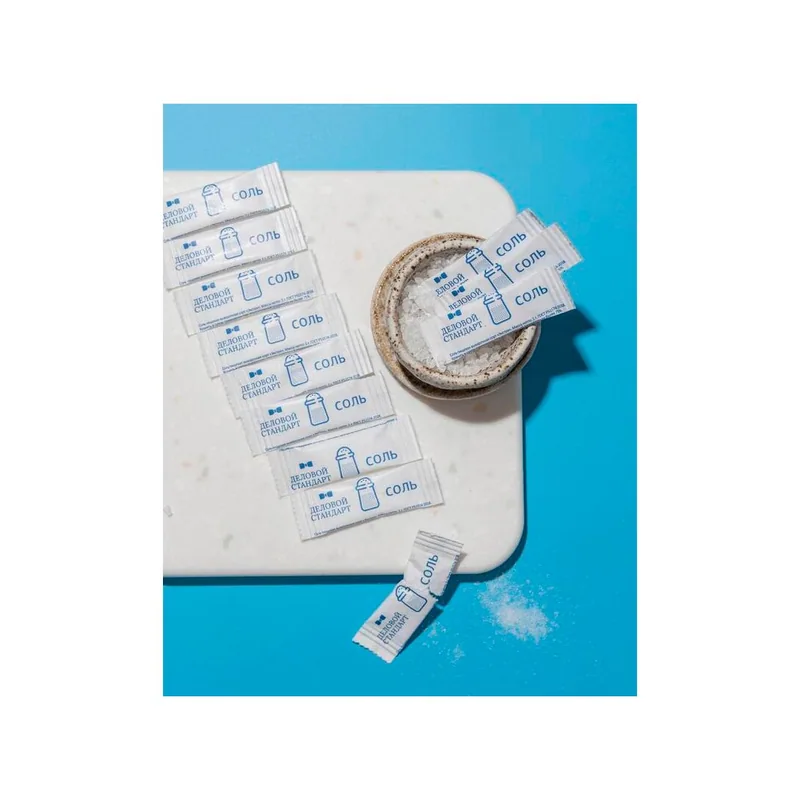

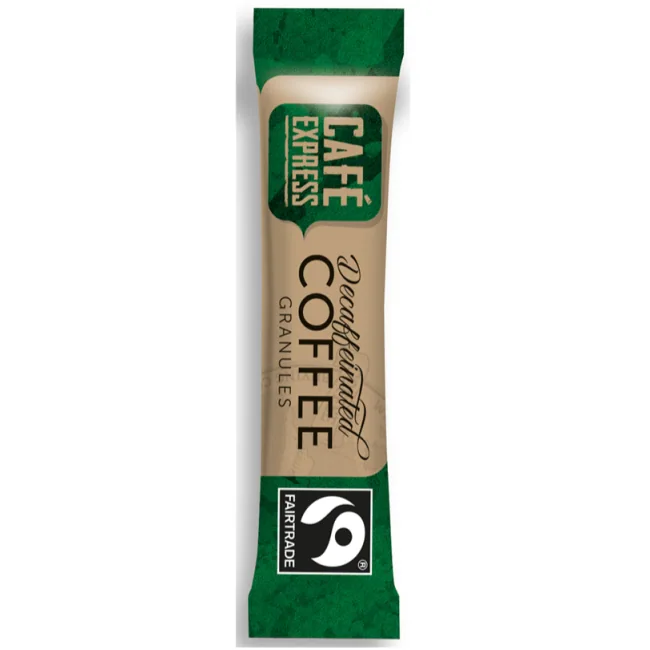

Real products on the market illustrate granule and crystal portion packs. These third-party brands are packaging references, not COTECH customers or products. The exact dosing and stick format for your granules must be confirmed with your own samples.
